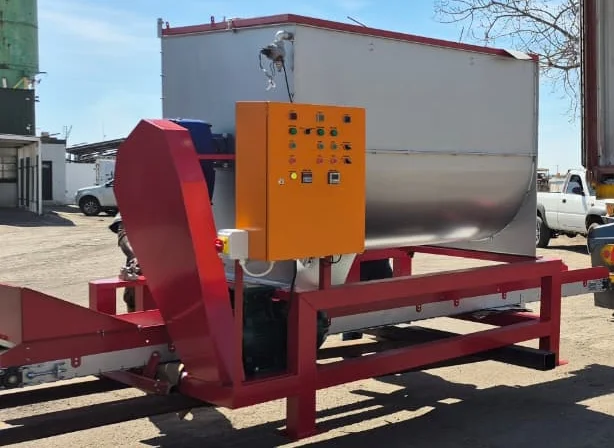

Automated 2600L Ribbon Blender

2600-litre ribbon blender with a single-button cycle for timed mixing, water spray and automatic discharge. Handles batches up to 700 kg with hopper-level feedback controlling the discharge gate.

Request a Quote

All machines

ref / automated-2600l-ribbon-blender

Automated 2600L Ribbon Blender — 2600-litre ribbon blender with a single-button cycle for timed mixing, water spray and automatic discharge. Handles batches up to 700 kg with hopper-level feedback controlling the discharge gate. Built by RND Automation in South Africa.

spec sheet

Reference specification.

Confirm the final feed, hopper, bag size, controls and throughput for your material before ordering.

Capacity: 2600 litres / up to 700 kg per batch
Voltage: 380V AC, 20A, three-phase

about this machine

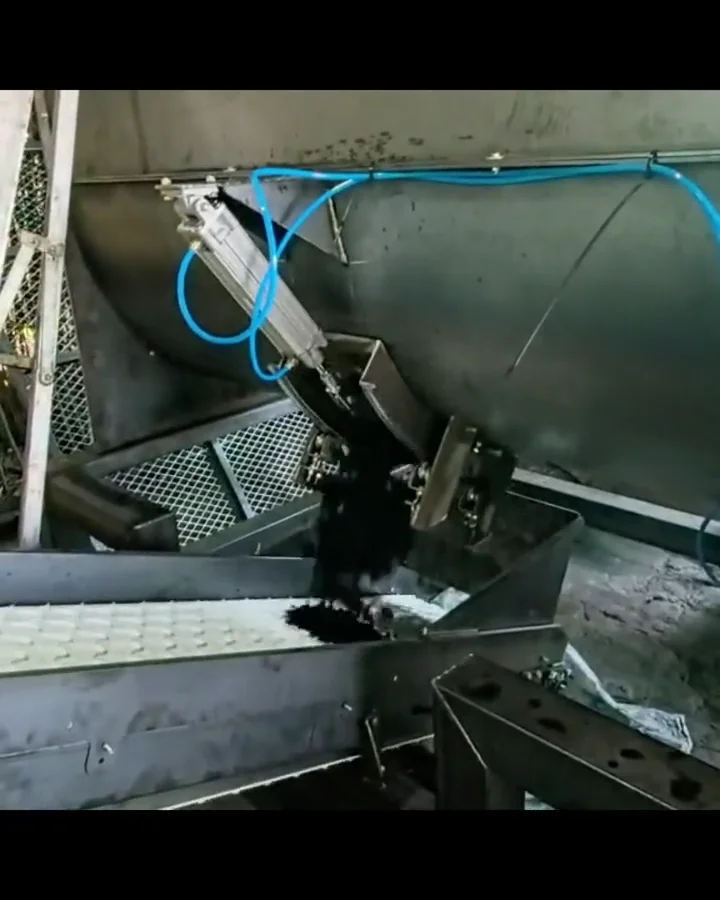

One button starts timed mixing and the water spray manifold, followed by pneumatic discharge gate opening.
A depth sensor closes the discharge gate when the downstream hopper is full and reopens it as the level drops.
Adjustable timer provides a 5-10 minute mixing cycle.

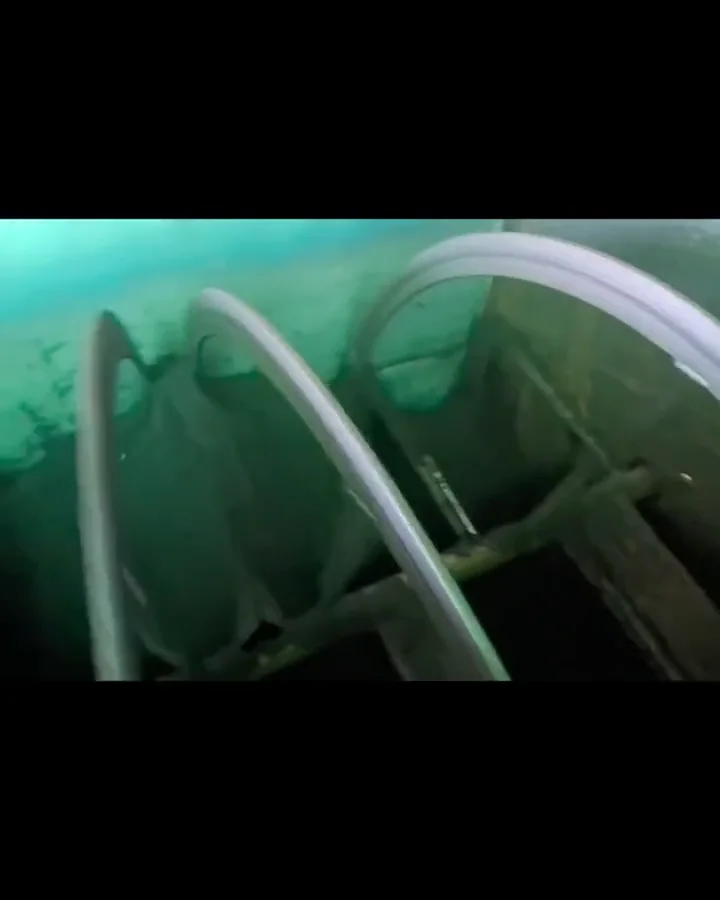

A single helical ribbon and opposing welded paddles move material in opposite directions to shear and fold the mix.
Variable-speed drive (VSD) with soft-start ramping, overload protection and automatic shutdown on phase failure.
Standard contactors, relays and timers control the sequence without a PLC.
Outboard pillow-block bearings, external grease points and a sliding belt-tension mount simplify routine servicing.
Top safety grille over the mixing vessel.
