Hammer Crusher

Hammer mill with built-in feed and discharge augers to move material through the crusher, plus integrated dust extraction.

  • 3-6 tonnes/hour
  • 380 V
unit view
crushing
Hammer Crusher — Hammer mill with built-in feed and discharge augers to move material through the crusher, plus integrated dust extraction. Built by RND Automation in South Africa.

spec sheet

Machine details.

These specifications describe the reference configuration. We’ll confirm the right setup for your material and site when we quote.

Capacity
3-6 tonnes/hour
Power
5.5 kW
Voltage
380V
Dimensions
2020 L × 1380 W × 2200 H mm
Weight
350 kg

about this machine

  • Feeding and extraction augers are integrated into the machine design.
  • The reversible drive lets the hammers work in either direction, helping extend their service life.
  • Integrated extraction helps control airborne dust during crushing.
  • 3-6 tonnes per hour from a single 5.5 kW 380V motor.

applications

  • charcoal
  • briquette feed
  • biomass
  • size reduction

on the floor

The real machine, running.

Photos and clips straight from the workshop floor — no renders. Click a tile to play.

crusher running / feed to bagging
feeding the hopper
5.5 kW reversible drive
filling the bag

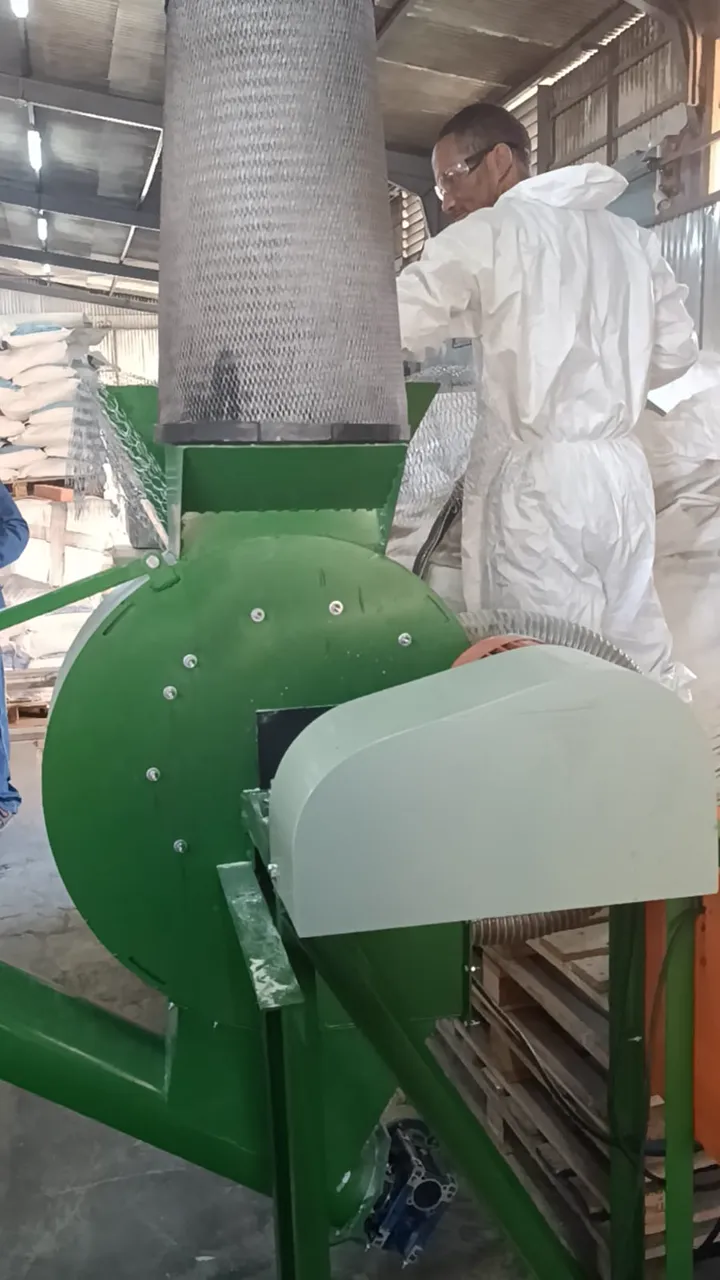

rotor housing + dust stack
the finished grind

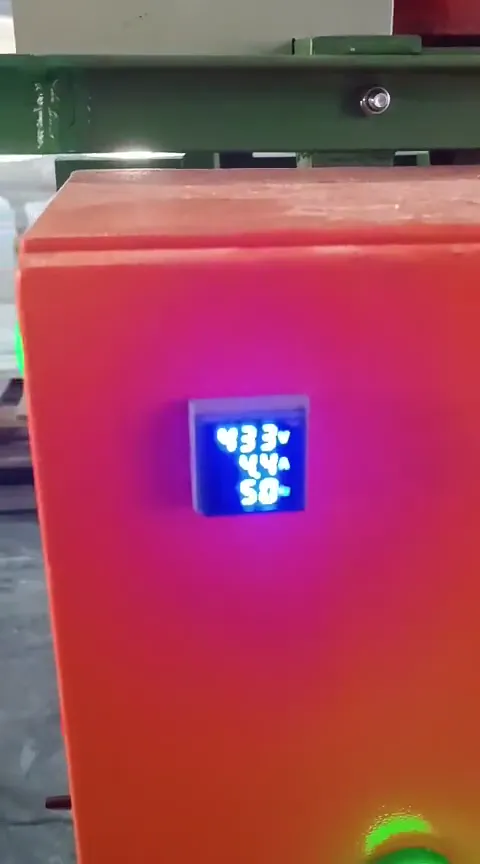

433 V / 4.4 A under load

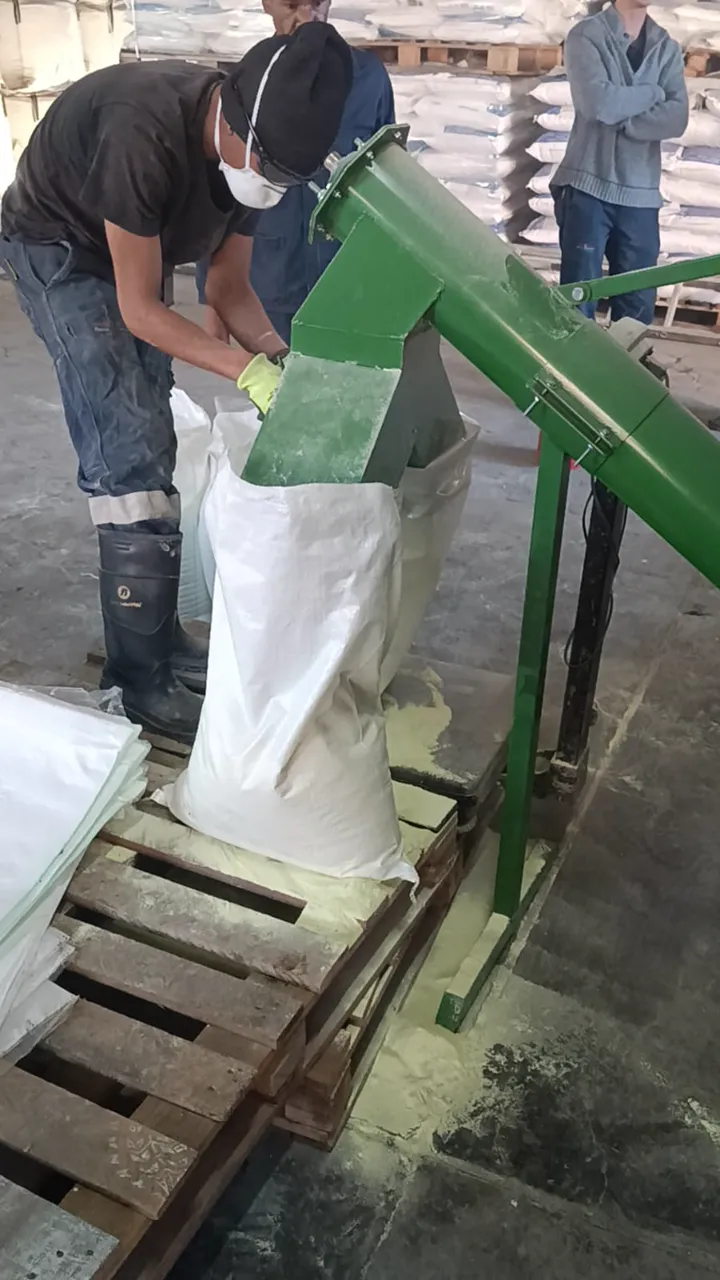

bagging off the discharge auger

custom builds

Need to confirm this machine for your line?

Send the material, target throughput and available floor space so the equipment and available options can be confirmed.
