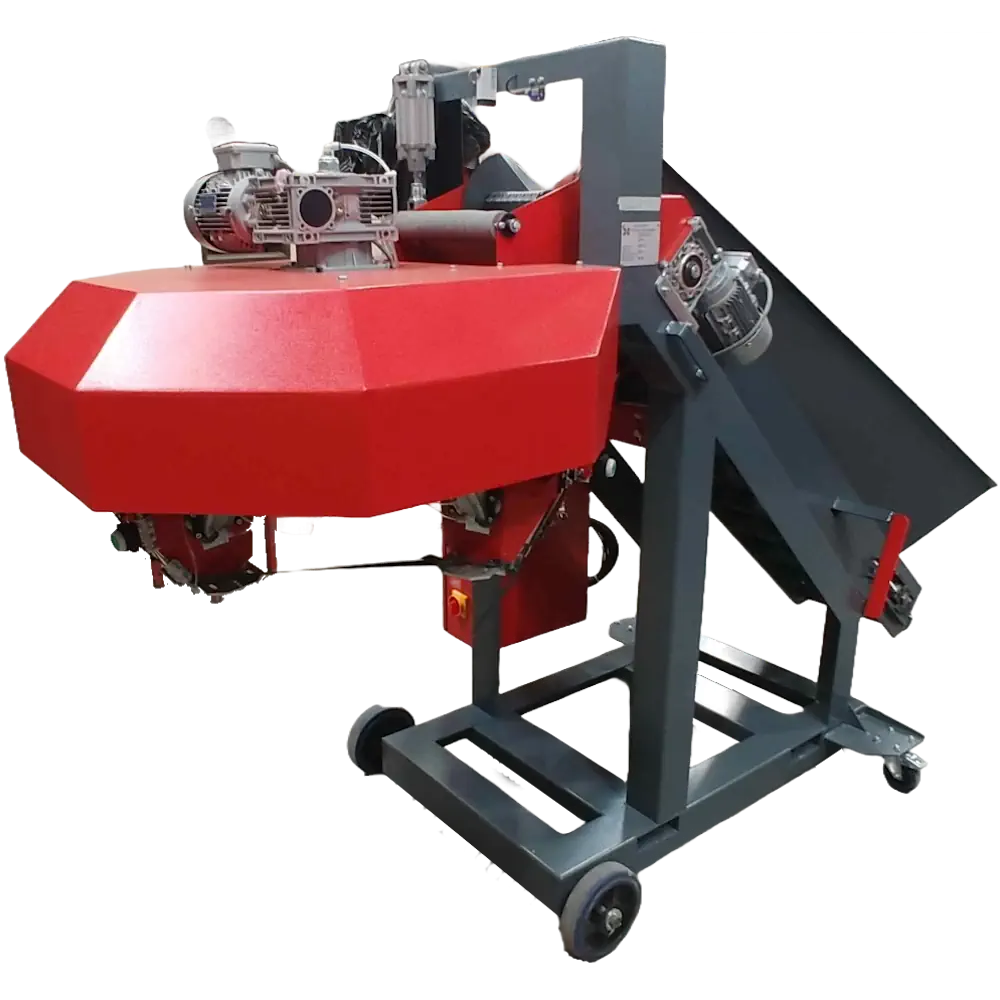

HD3 Bagging Machine

Open-mouth bagger with three filling stations and integrated electronic weighing.

  • 6 bags/min at 10 kg
  • 230 V
unit view
HD3 Bagging Machine — Open-mouth bagger with three filling stations and integrated electronic weighing. Built by RND Automation in South Africa.

spec sheet

Machine details.

These specifications describe the reference configuration. We’ll confirm the right setup for your material and site when we quote.

Capacity
6 bags/min at 10kg
Power
1.1 kW
Voltage
230V
Dimensions
2630 L × 1085 W × 1875 H mm
Weight
350kg

about this machine

  • Up to 6 bags per minute at 10 kg, with containers up to 40 kg.
  • 220 mm gravity-fed spout with belt or auger feed options.
  • Fills bags, burlap sacks, pails and boxes in manual or semi-automatic operation.
  • Requires a compressor; compressor not included.

applications

  • powders
  • pellets
  • flakes
  • granules
  • fibrous materials
  • charcoal

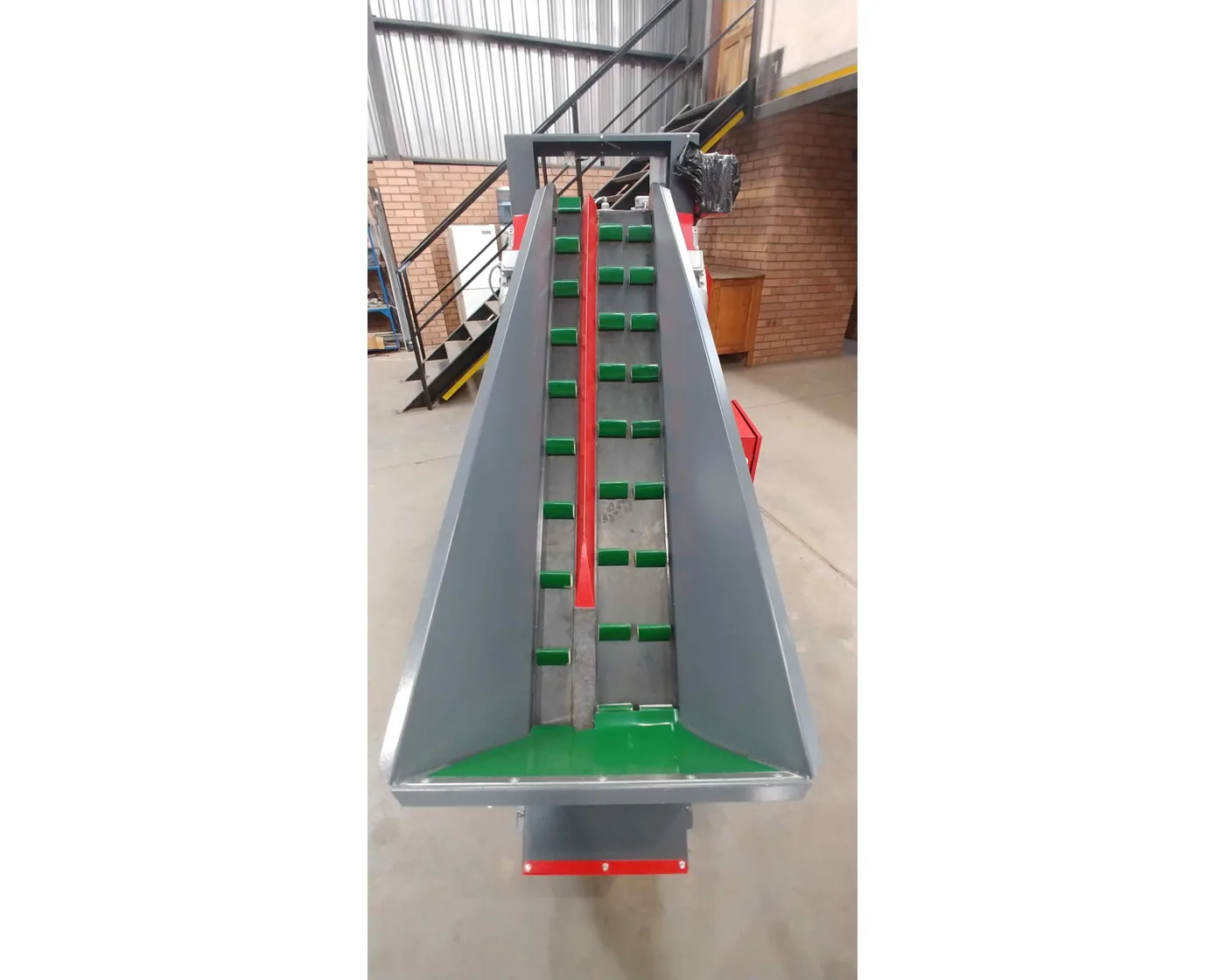

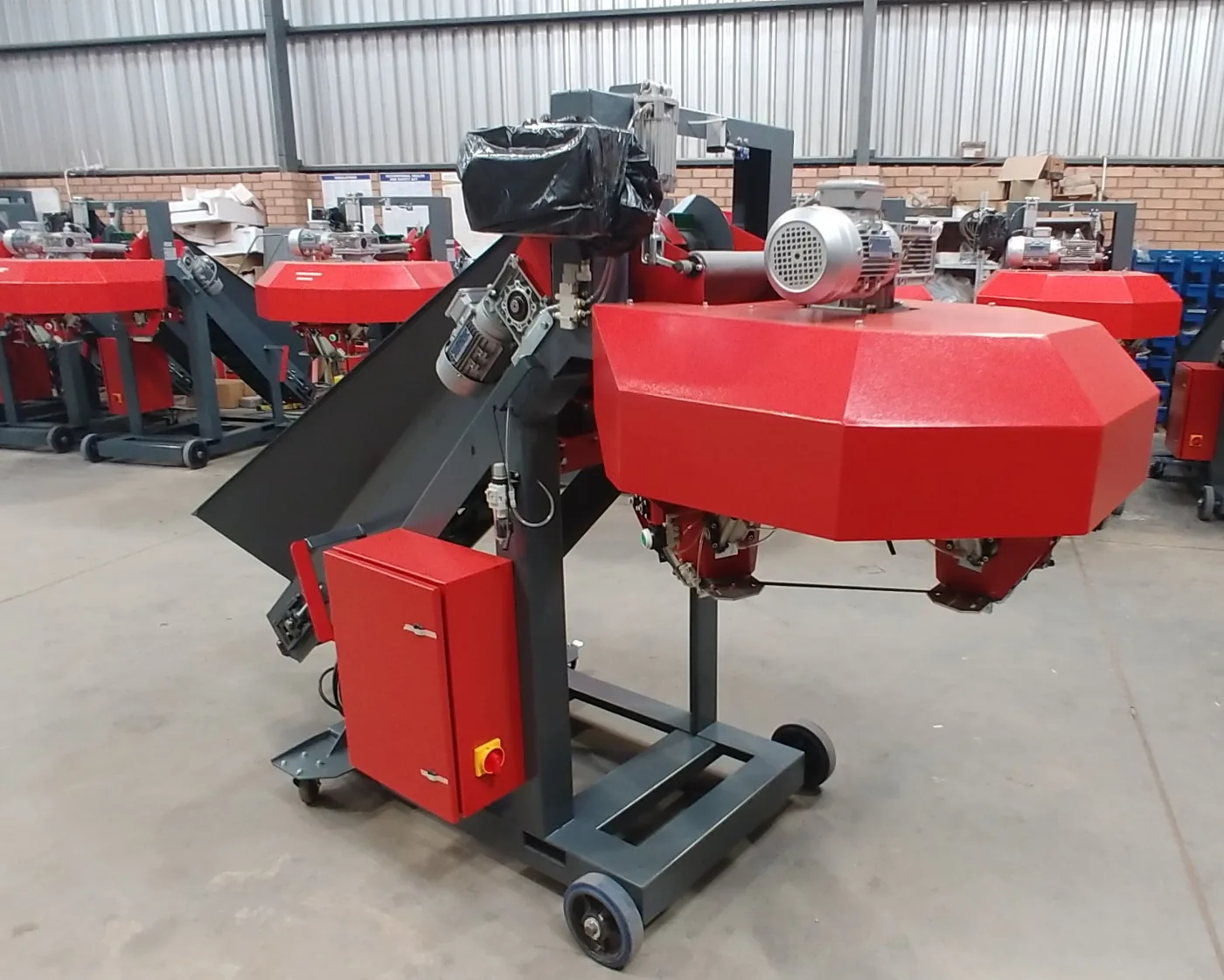

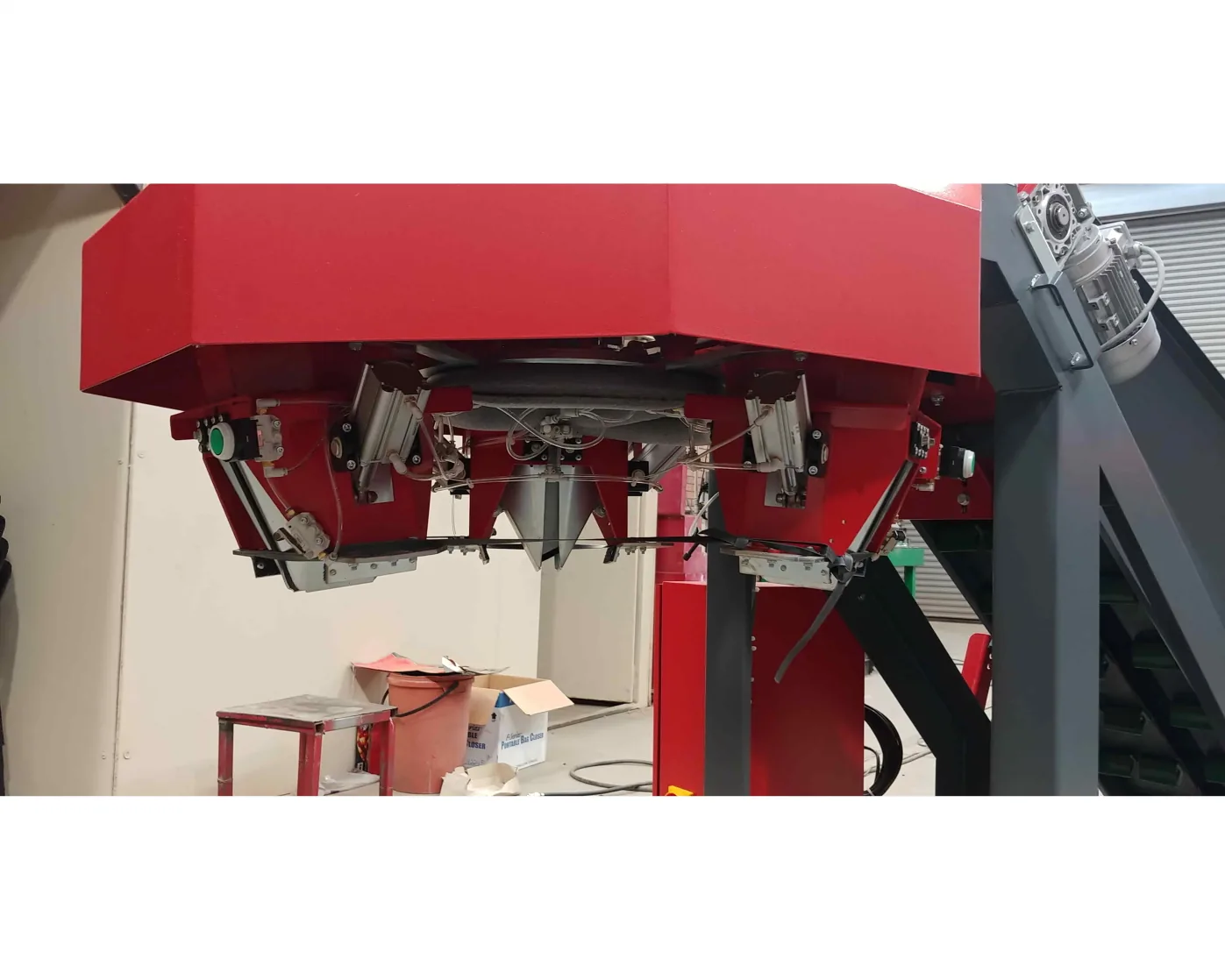

on the floor

The real machine, running.

Photos and clips straight from the workshop floor — no renders. Click a tile to play.

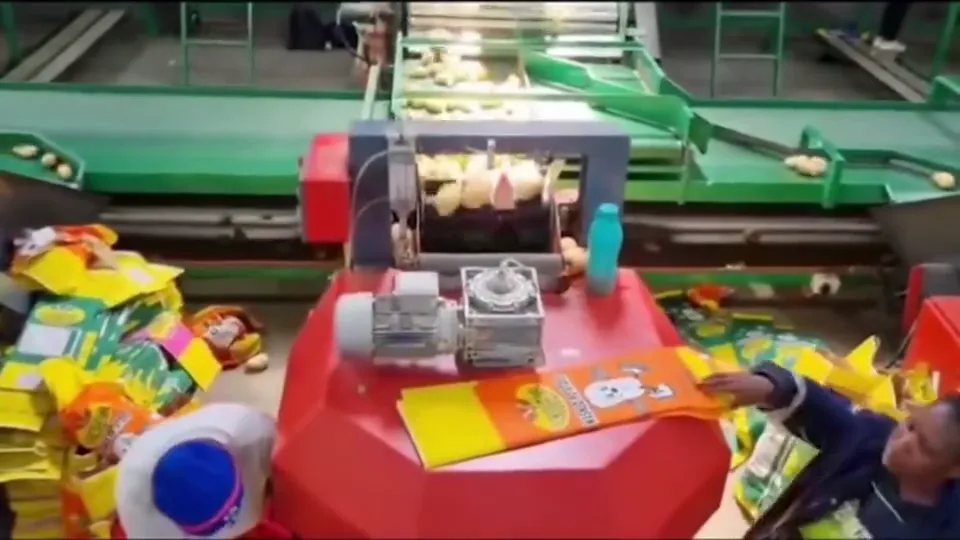

filling stations at work

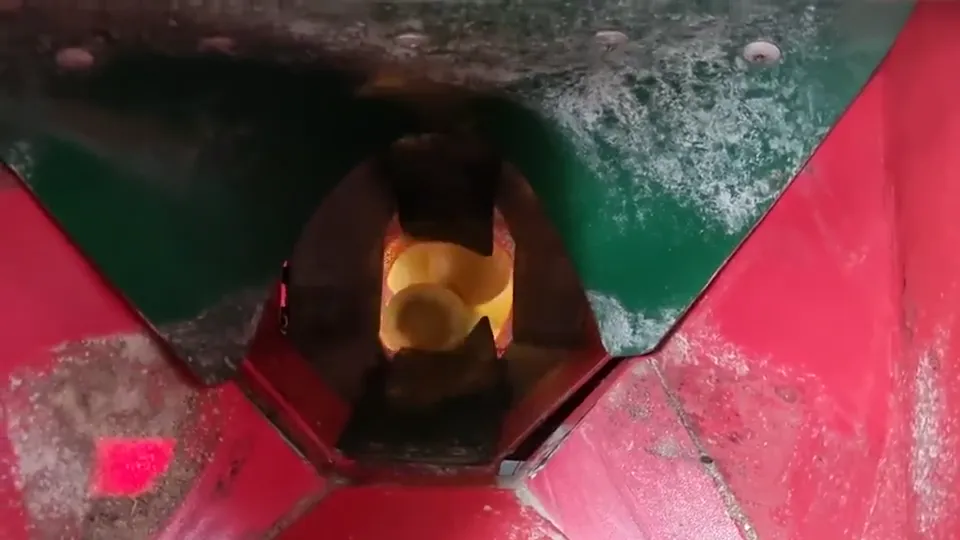

down the filling head

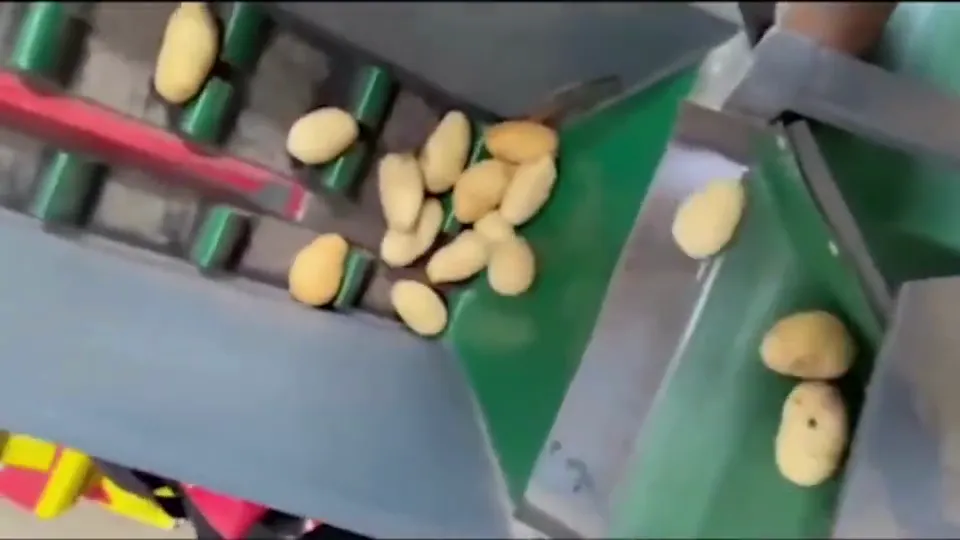

on the weigher belt
