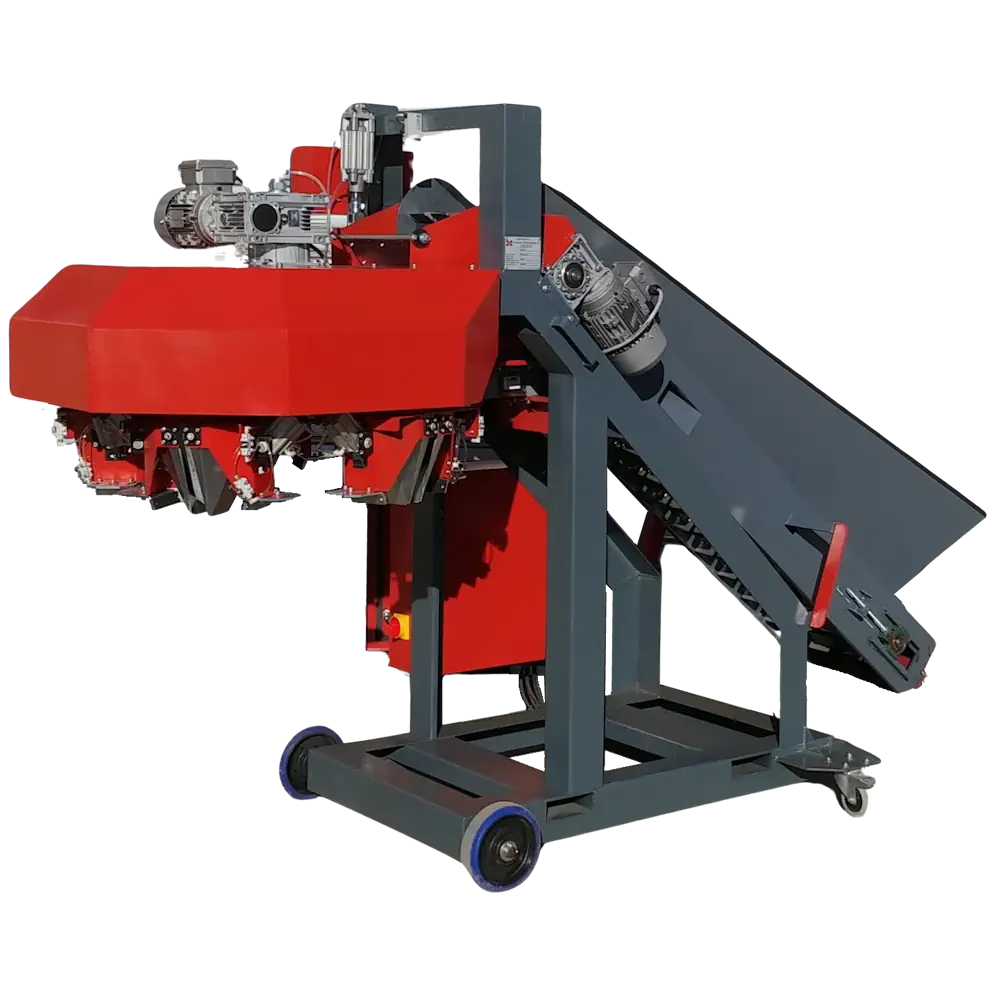

HD5 Bagging Machine
Open-mouth bagger with five filling stations and integrated electronic weighing.
ref / hd5-bagging-machine
unit view
bagging
spec sheet
Reference specification.
Confirm the final feed, hopper, bag size, controls and throughput for your material before ordering.
- Capacity
- 8 bags/min at 10kg
- Power
- 2 kW
- Voltage
- 230V
- Dimensions
- 2630L x 1800H x 1100W
- Weight
- 370kg
why this machine
- Up to 8 bags per minute at 10 kg, with containers up to 40 kg.

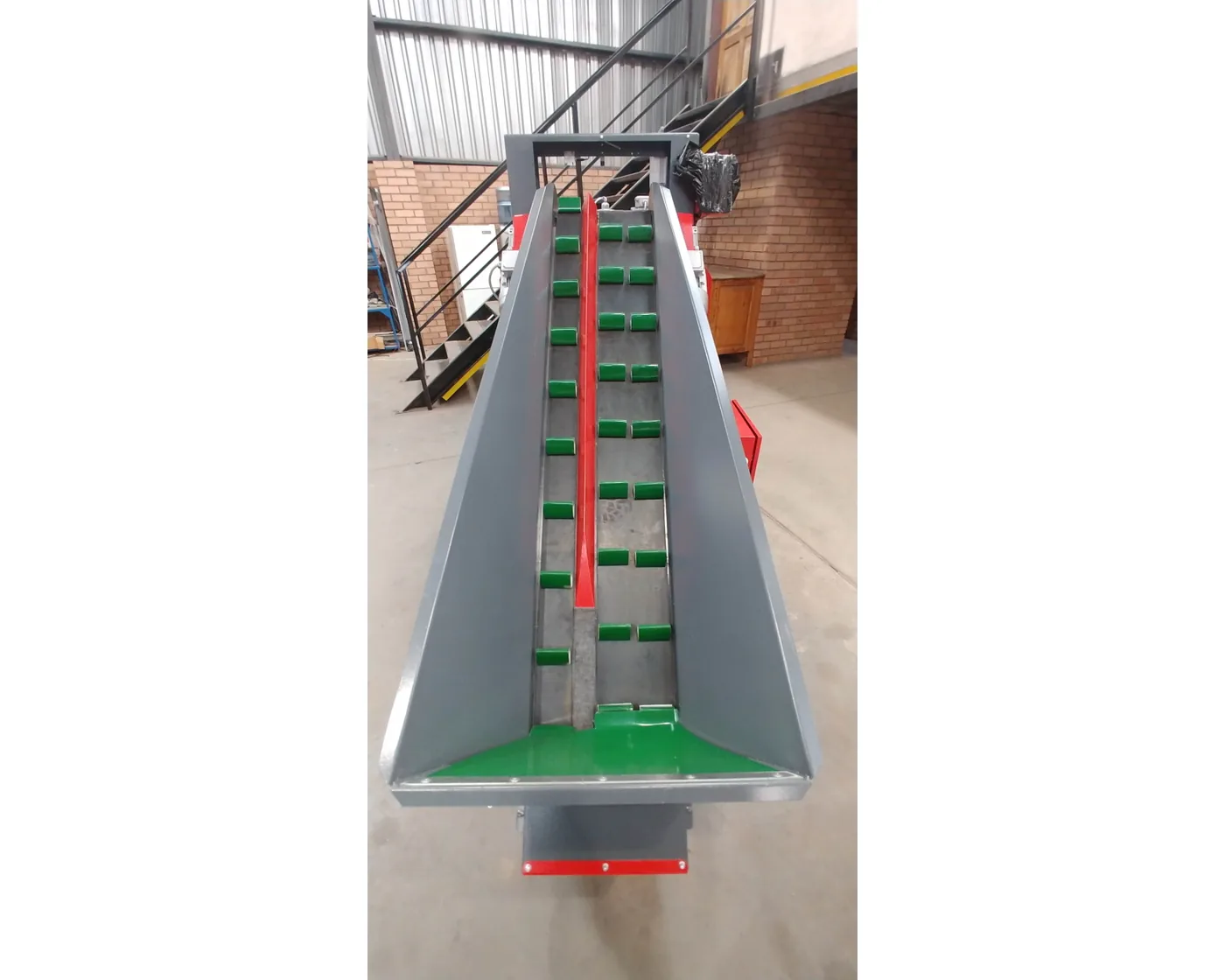

- 220 mm gravity-fed spout with belt or auger feed options.
- Requires a compressor; compressor not included.
applications
- bulk packing
- feed
- fertilizer
- industrial powders
- charcoal
on the floor

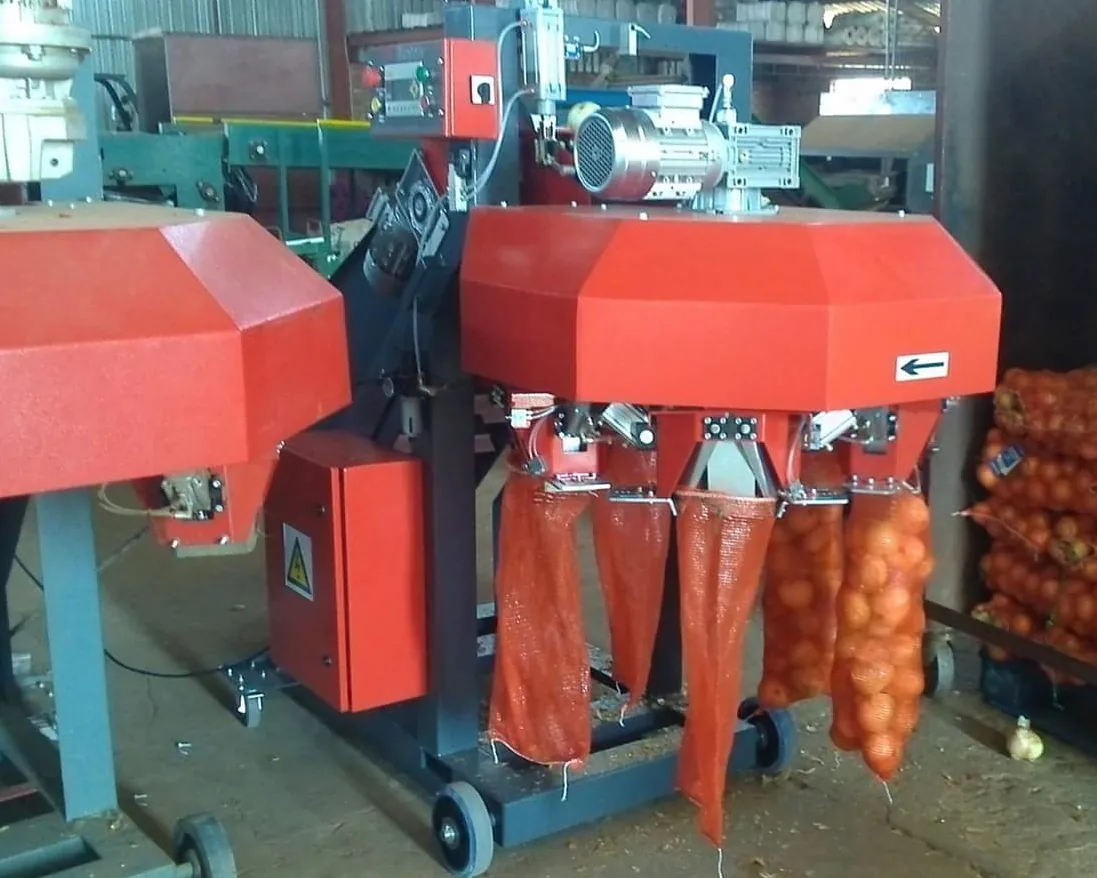

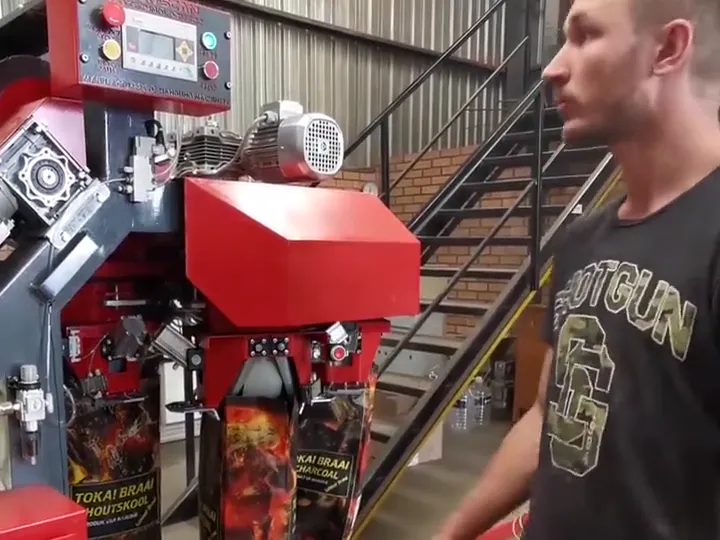

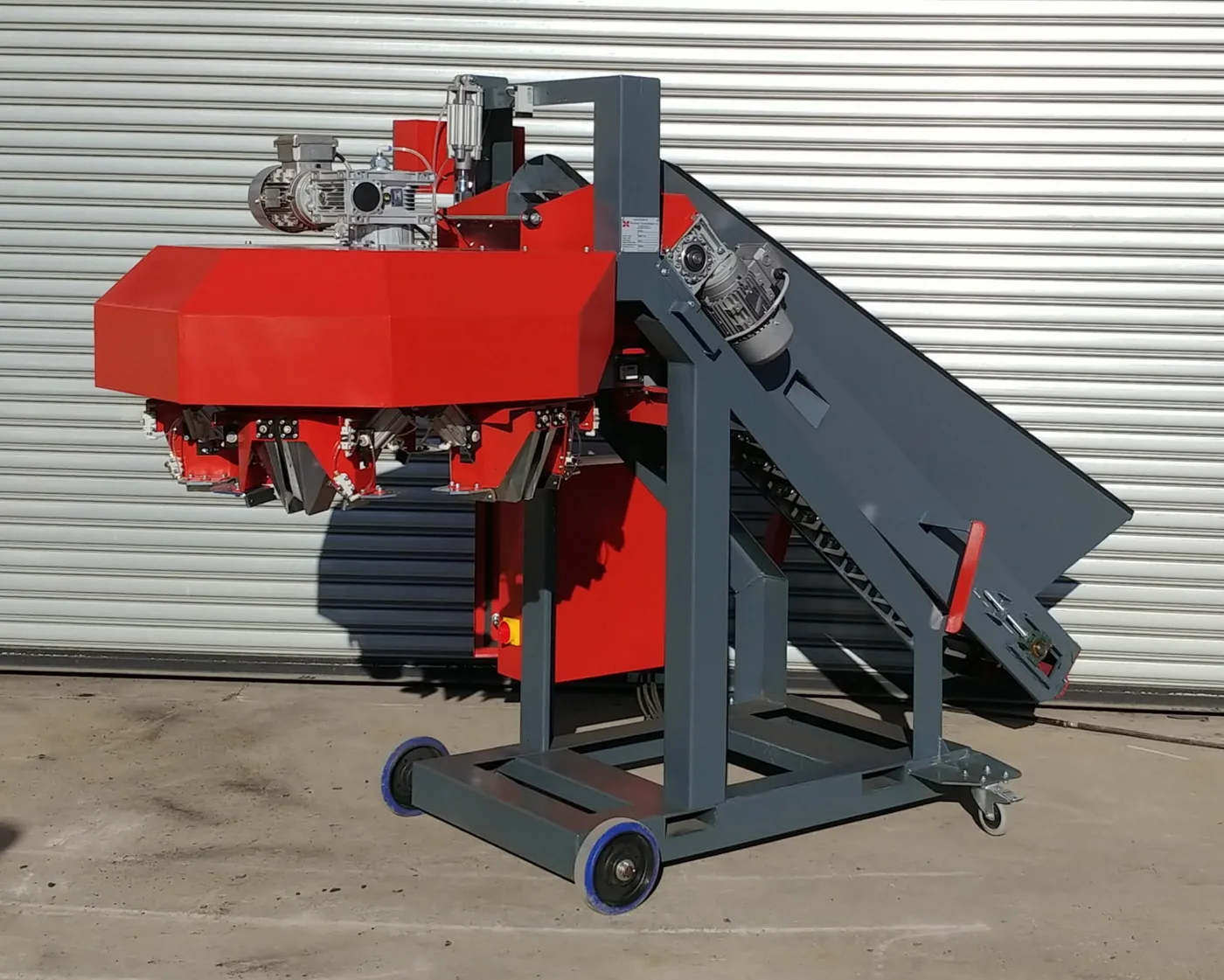

The real machine, running.
Photos and clips straight from the workshop floor — no renders. Click a tile to play.
related machines
More bagging equipment.
custom builds
Need to confirm this machine for your line?
Send the material, target throughput and available floor space so the equipment and available options can be confirmed.
